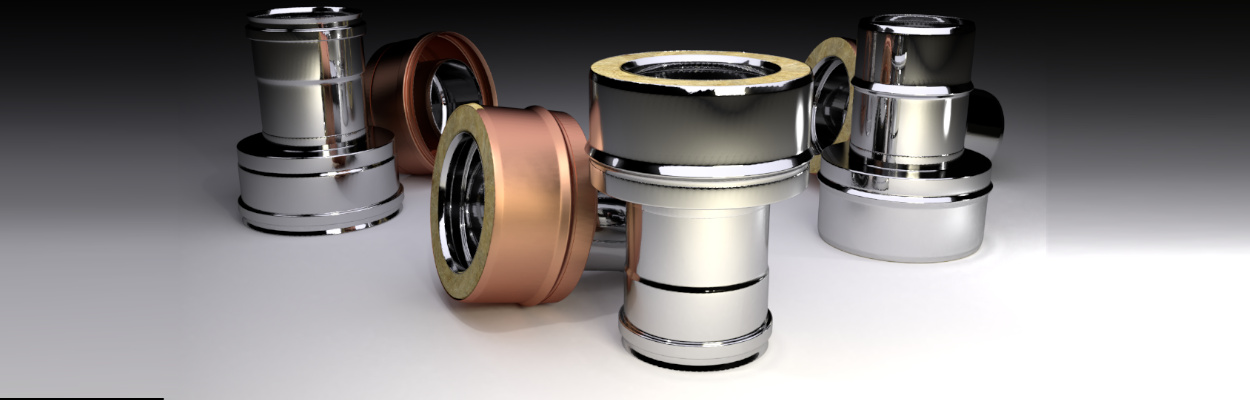

Adattatore per canne fumarie

Adattatore MP/DP e DP/MP

Articoli:
Art.4500 - adattatore MP/DP
Art.4510 - raccordo caldaia
Art.4520 - adattatore DP/MP

Materiali disponibili:
Inox
Rame

Usage of the product

Stack pipe adapter that allows switching from double wall to single wall system and from single wall to double wall system.

Installation instructions

It is secured to the chimney by fitting a clamp of the appropriate diameter to the smoke duct. The installation must be carried out by qualified personnel

Art.4500 - 4510 - 4520

DOWNLOAD PDF

Art. 4500 - Adapter SW/DW

Ø	80/130	100/150	130/180	150/200	180/230	200/250	250/300	300/350	350/400
H	200	200	200	200	200	200	200	200	200
Øi	80	100	130	150	180	200	250	300	350

Art. 4510 - Boiler adapter

	80/130	100/150	130/180	150/200	180/230	200/250	250/300	300/350	350/400
H	200	200	200	200	200	200	200	200	200
Øi	80	100	130	150	180	200	250	300	350

Art. 4520 - Adapter SW/DW

	80/130	100/150	130/180	150/200	180/230	200/250	250/300	300/350	350/400
H	200	200	200	200	200	200	200	200	200
Øi	80	100	130	150	180	200	250	300	350
